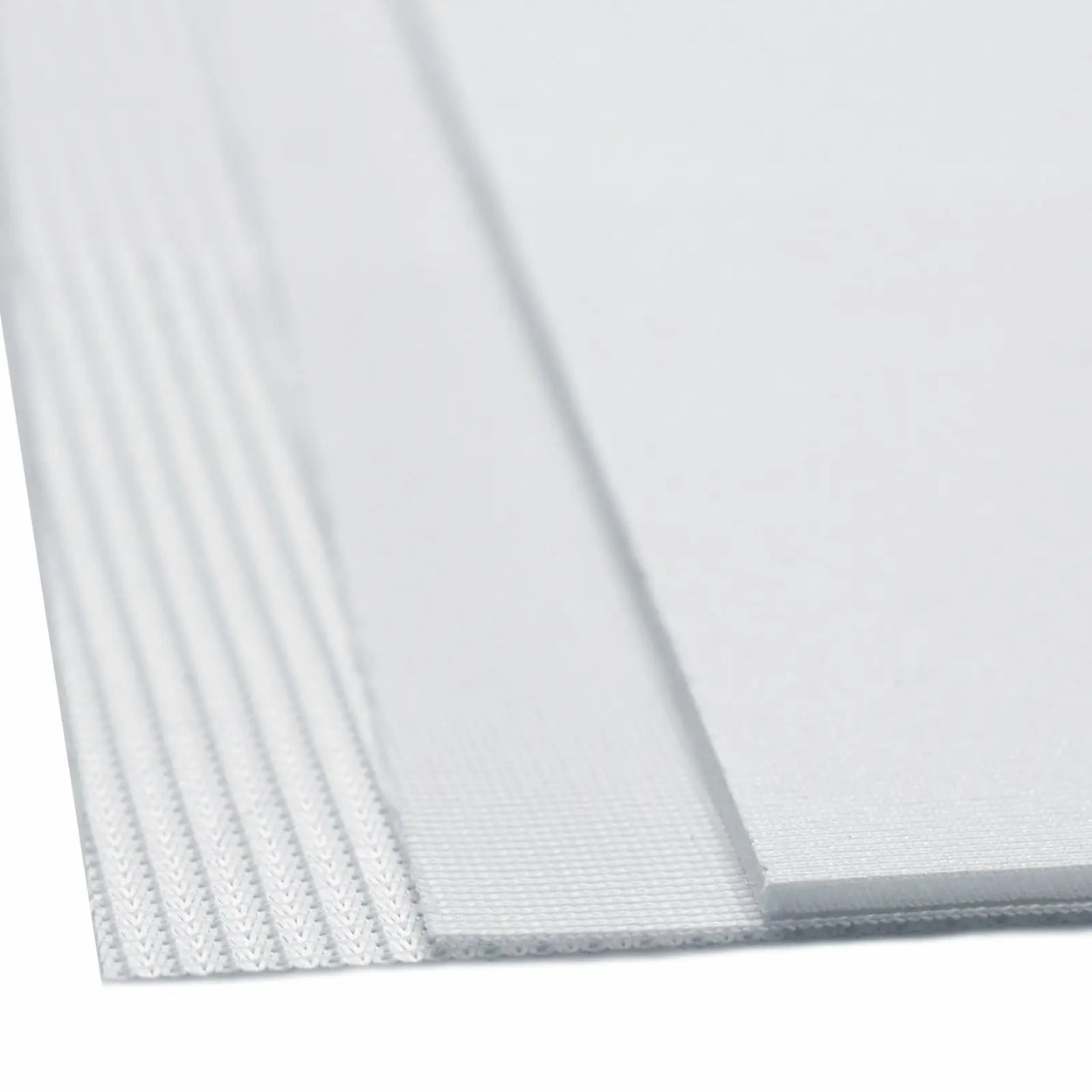

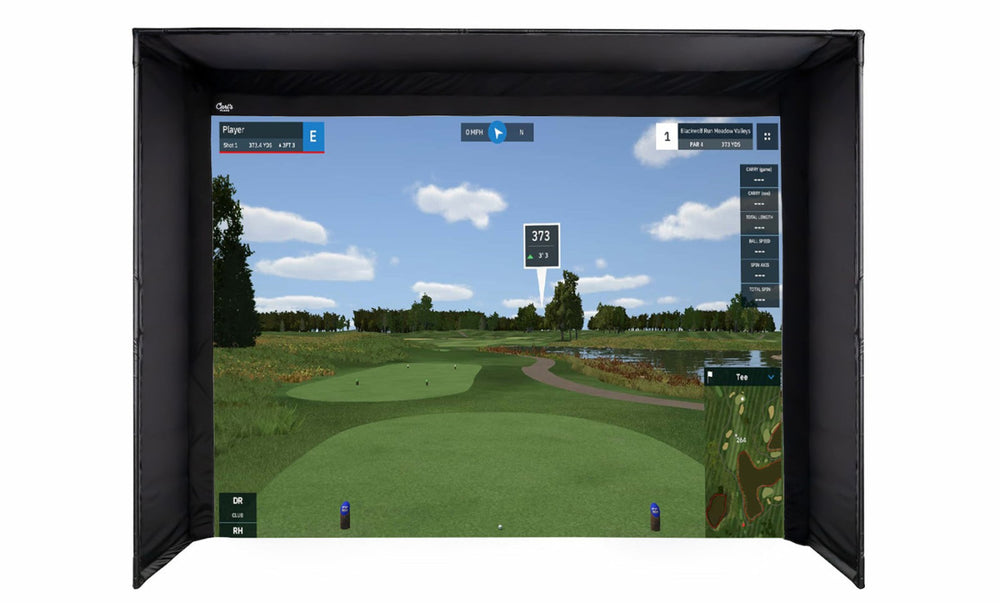

Carl's Place DIY Golf Simulator Enclosure Kit with Premium Impact Screen

Along with reusable zip ties, ball bungees are used to secure screens and enclosures to the frame.

1. Insert the loop end of the bungee into a grommet from behind the screen.
2. Thread it through the grommet until the toggle ball touches the backside of the grommet.
3. Pull the cord over and around the frame/pipe.
4. Hook the cord over the toggle ball to create a loop.

Our DIY Golf Simulator Enclosures require 1-inch EMT (Electrical Metal Tubing/Conduit). We recommend you add a Pipe Framing Kit to your order so you get pre-cut, perfectly sized pipes for your enclosure frame. However, you can source EMT pipes on your own. Your kit will include all details on what lengths and quantities of pipes are required.

DIY Golf Simulator Enclosure Kits assemble in about an hour, depending on the size. Of course, it goes a bit faster if you have a helper. Here's our assembly video and manual for reference.

EMT stands for Electrical Metal Tubing, also known as, Electrical Metal Conduit. We often just refer to them as pipes on our website. You need EMT  (pipes) to build the frame for your enclosure/screen. Do not mistake PVC pipes for EMT. PVC will not work with our fittings. You have 2 options on how to get the necessary pipes:

1. Add a Pipe Framing Kit. (You'll see these as accessories on our DIY and Pro Golf Enclosure Kits.
2. Source EMT pipes at your local building supply store.
   • DIY Enclosures require 1″ EMT.
   • Pro Enclosures require 2" EMT which can be more difficult to find. Make sure you have a source for your EMT when selecting whether you want to add on our Pipe Framing Kit options.

The projector specifications determine the maximum image size and how far from the screen it will need to be mounted. Check out our screen size calculator to find the best mounting location.

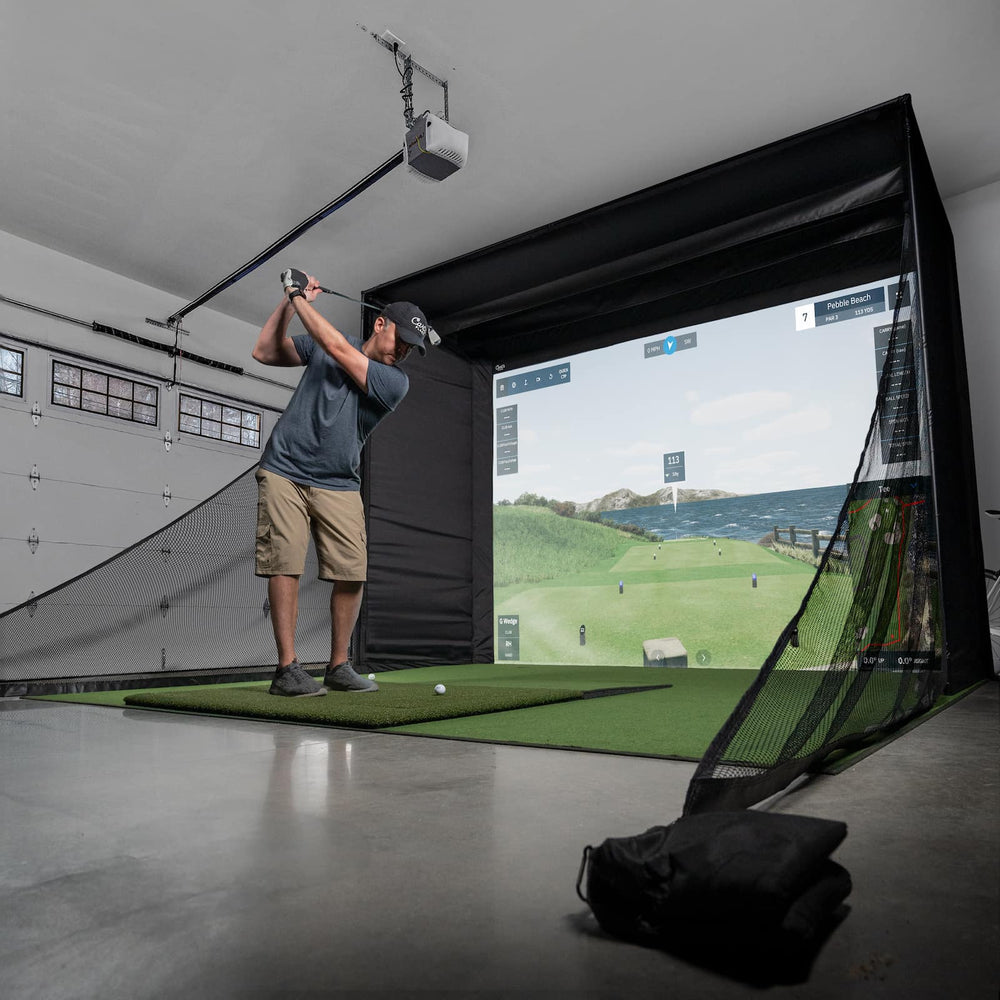

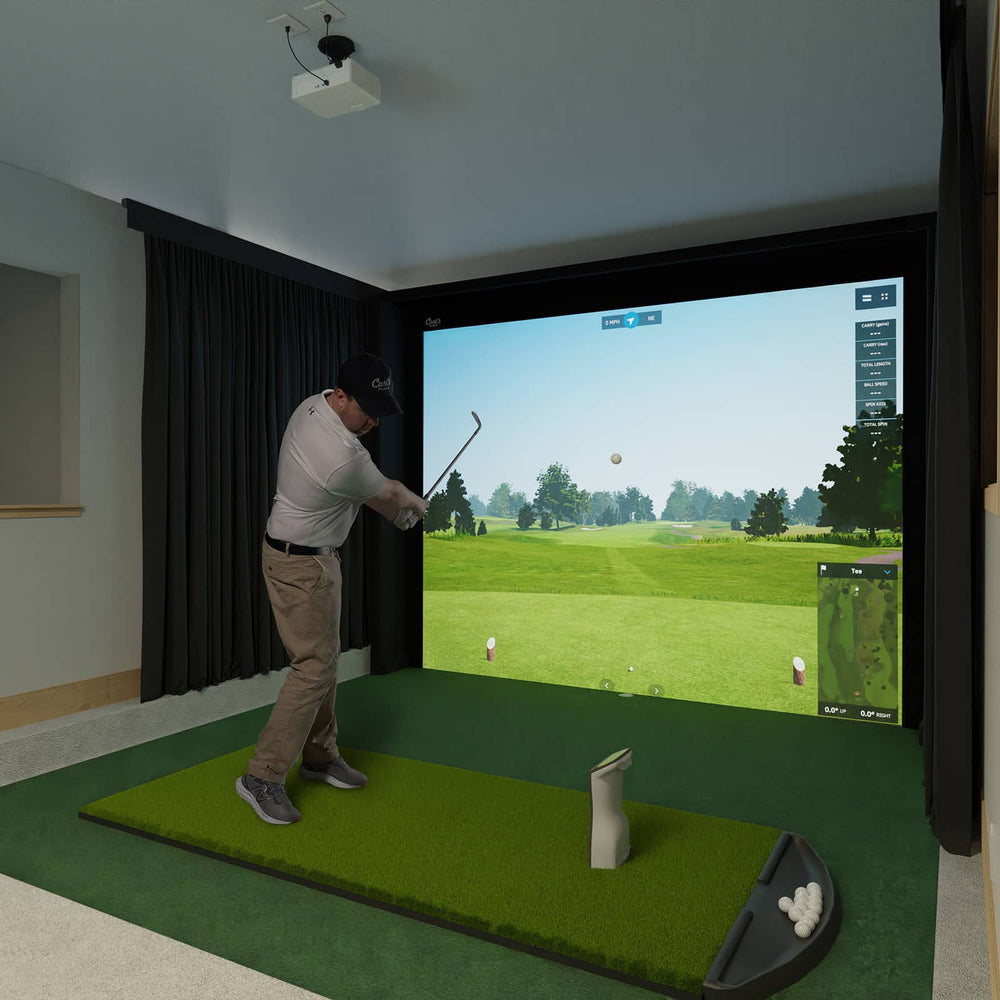

As for how to mount your projector, here are the places to put a golf simulator projector.

1. Mount a projector above your tee or mat.
   • Flush-mount to your ceiling in spaces with lower ceilings
   • Drop-mount from your ceiling in spaces with higher ceilings
   • Frame-mount from your Carl's Place Pro Enclosure
2. Place a short-throw projector on the floor inside the golf simulator.  Of course, if you floor-mount your projector you must build or buy a protective cover to keep it safe from golf balls and clubs.

Read more here about projector mounting options.

For the safety of both the golfer and the screen, we recommend standing a minimum of 10-12 feet away from the screen.

We do NOT recommend ironing your golf screen, simply because it is very easy to damage the screen. And we want your golf screen to last you a long, long time. With wrinkles and fold marks, the best thing is prevention. Unpack your new screen immediately, and if you need to store it, fold it very loosely. But if you're reading a section on ironing your golf screen, it's probably too late for prevention. Know that mounting your golf screen to a frame with tension, like with our ball bungees, and letting it relax for a couple of days will smooth out most wrinkles.

That being said...

We have heard of customers being successful in removing wrinkles and fold marks from their screens using a clothes iron. If you want to try this, do so only on the backside of the material and on a VERY LOW setting. If it doesn't go well, you might want to check our Clearance section for a new screen.

Check out this article for all our recommendations on 'How to Clean Your Golf Impact Screen'.

We want your indoor golf set up to be fun, help improve your game, and be safe for everyone.

• Make sure to follow the assembly manual provided with your enclosure.
• Keep children, pets, and spectators out of swing range.
• Protect ceilings, walls, windows, cars & neighboring homes.
• Understand the Terms of Sale of using a Carl's Place product.

Golf hitting mats give you a nice cushy surface to stand and swing your golf club. They help protect your joints from any impact during your swing. They also let you have a more realistic golf practice when you can tee up the golf ball at the perfect height and swing freely.

When choosing a size for your golf mat consider the golfer's needs. A size of 4'x5' will let most golfers swing a driver with their heels comfortably on the edge of the mat. A larger size, 5'x7' or 4'x9', would be able to accommodate golfers with a wide stance or if you have friends over swinging either rightie or leftie.

Shop golf mats.

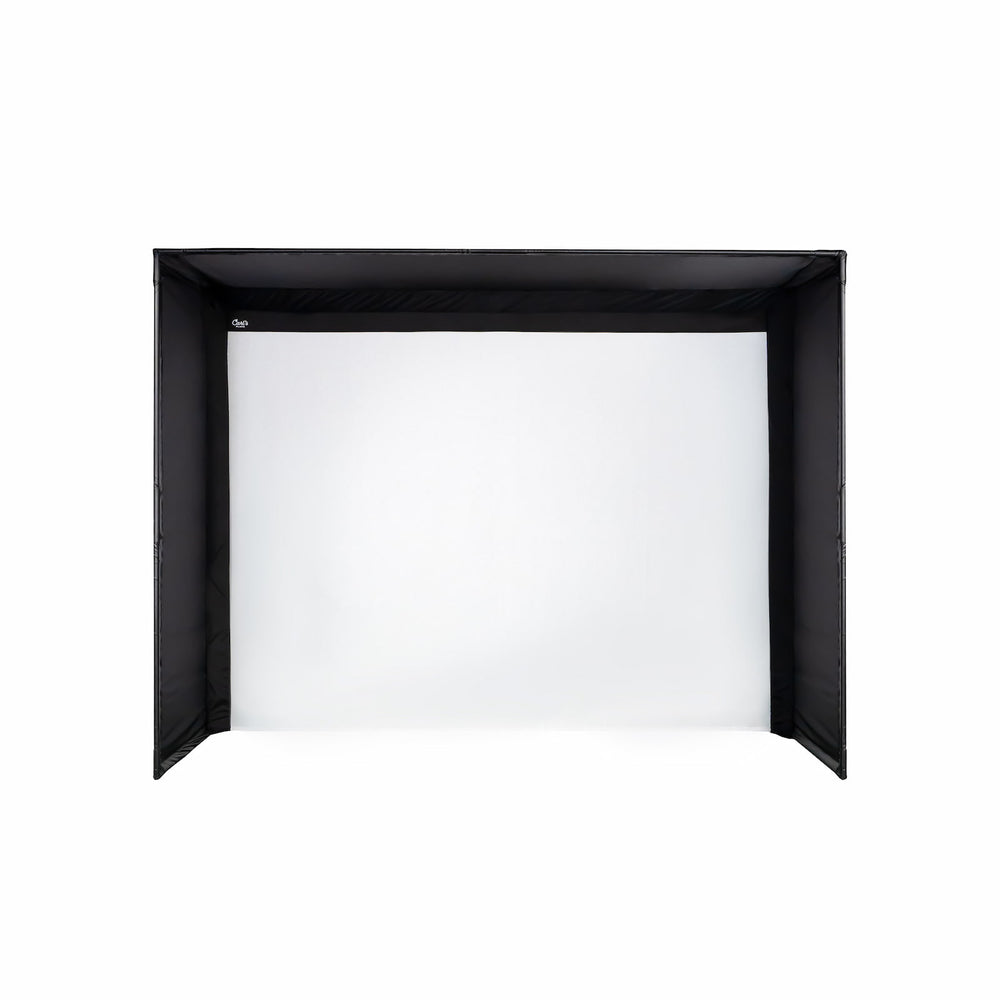

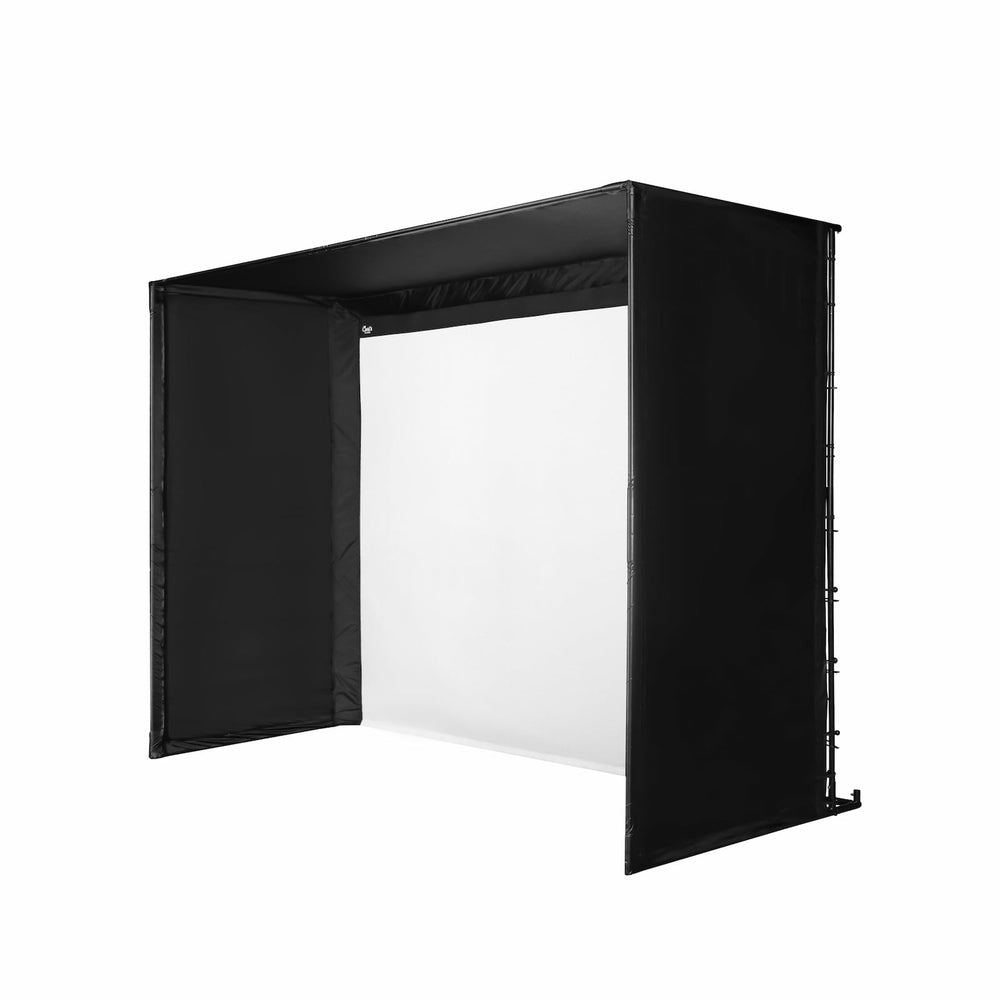

Our DIY Golf Enclosure kit offers you an easy, entry-level way to build a safe place to swing your clubs. An affordable, convenient kit, the DIY Enclosure Kit helps home golfers take the guesswork out of designing their own golf simulator.

Our PRO Golf Enclosure kit is a higher-end enclosure for top-of-the-line performance in a golf simulator. Because it's available in wider, deeper bays with additional safety features it makes the best commercial golf simulator enclosure.

Not sure which one is for you? Check out this article 'DIY vs. Pro' to help you decide.

When measuring for a golf simulator, make sure you take into account:

• Buffer space: You don't want your golf simulator right up next to any walls or ceiling. Balls that contact the walls or ceiling can cause damage and have unwanted bounce back.

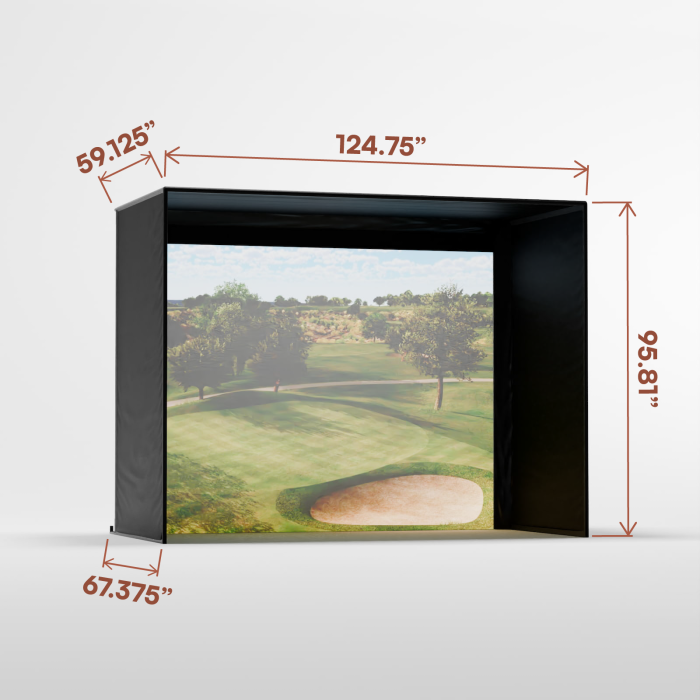

• Footprint of the golf enclosure: Make sure to check the actual dimensions of the enclosure footprint. Our C-Series enclosures have built-in buffer space in the rear with the backset rear fitting.
• Safe golfing distance away from the screen: For the safety of both the golfer and the screen, we recommend standing a minimum distance of 10 to 12 feet away from the screen.
• Height of the golfer(s)
• Length of the golf club(s)
• Turf thickness, heating ducts, and soffits
• Furniture and access to doorways

Our golf enclosure kits are made to order (which is why we can customize them down to the inch!). We make sure they are measured, sewn, and packed perfectly before they are ready to ship. Because of that, production lead time may fluctuate based on volume. To see the expected shipping and delivery times, please add the item to your cart and enter your shipping information.

The enclosure material is not designed to take a direct hit from a golf ball. However, if you hit the white impact screen, and it bounces and hits the enclosure, you should not experience any issues.

We can easily make you a replacement screen to save you money. Replacement screens can be ordered by contacting one of our Customer Service Team Members. You can also call us at 412-567-4390. Learn more information about extending the life of your golf screen.

You can also check out our Clearance section to see if you can snag a deal on a replacement golf screen that fits your setup.

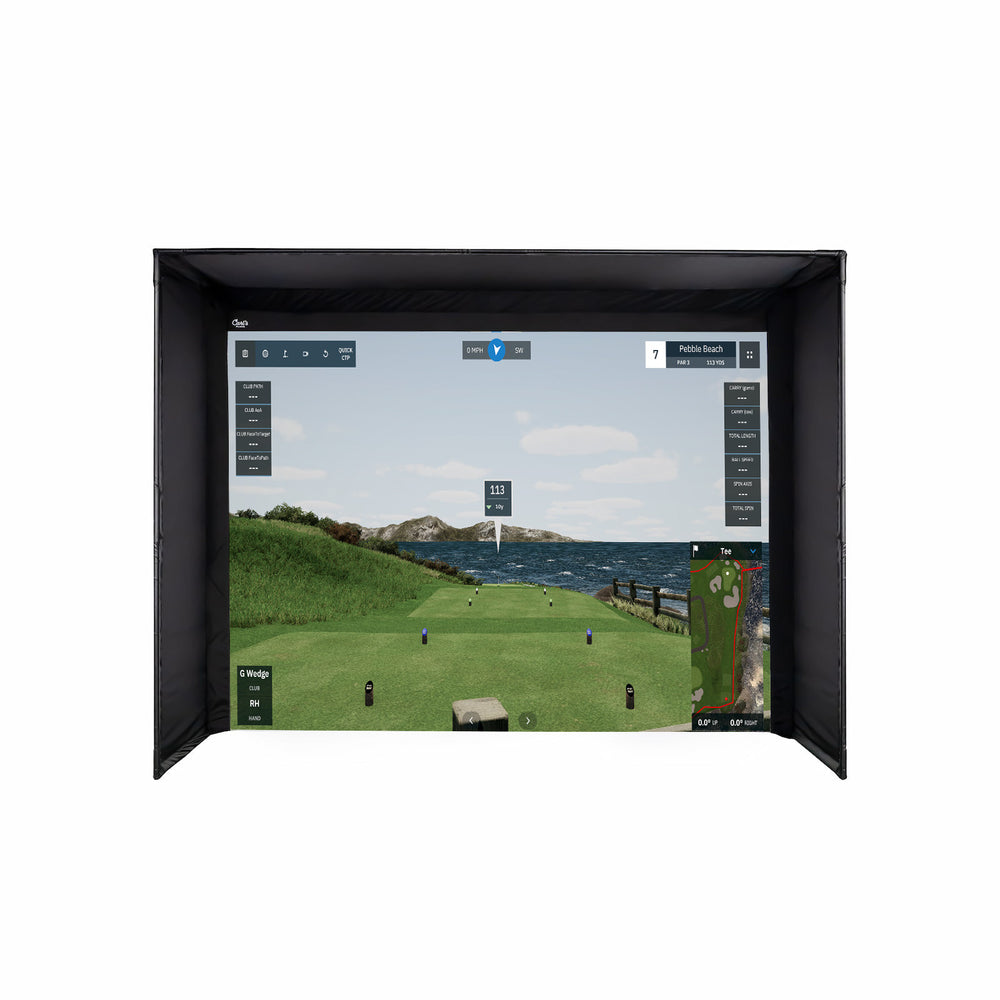

Aspect ratio simply refers to the shape of the image being projected. When the ratio of the projector, image, and screen match the image fills the entire screen and you will not see black masking bars.

An aspect ratio of 4:3 has the shape of a CRT TV, and a 16:9 has the shape of a flat screen TV. The 4:3 is very common for golf simulators because it allows you to go taller, giving you more room to swing, without needing a wider room. If space allows the 16:9 is great for 4K and HD images, but be aware if you are tall or have limited room depth that this option may be too short for you to swing a golf club. The 16:10 is an aspect ratio mostly used for computer displays and tablet computers. These days it’s somewhat uncommon for projection, but with some effort it should be possible to find a projector capable of this ratio.

For some customers, the projected image is secondary while the safety of the surrounding area is the priority. Selecting a size where the aspect ratio is non-standard, so that it fits your space, is also an option. Just be aware the image will not fill the entire screen if you are using it for projection and the black masking bars will be visible.

The 1:1 is a square and is not a standard aspect ratio for projectors, but may work if space is limited, although it increases the chances of seeing black bars and you will likely have to adjust the settings on your computer. Adjusting the settings on your computer may be difficult for most customers unless you are very technically savvy.

Yes! Head over to Build Your Own Golf Simulator where you can choose the size of enclosure and screen that fits your space. Please make sure to review our Returns Policy for custom products.
